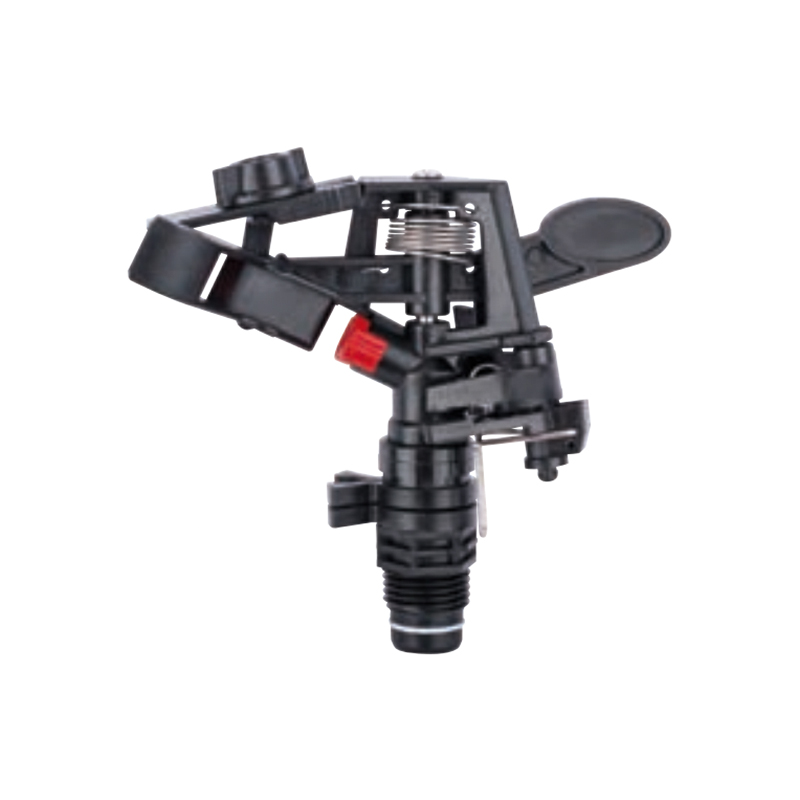

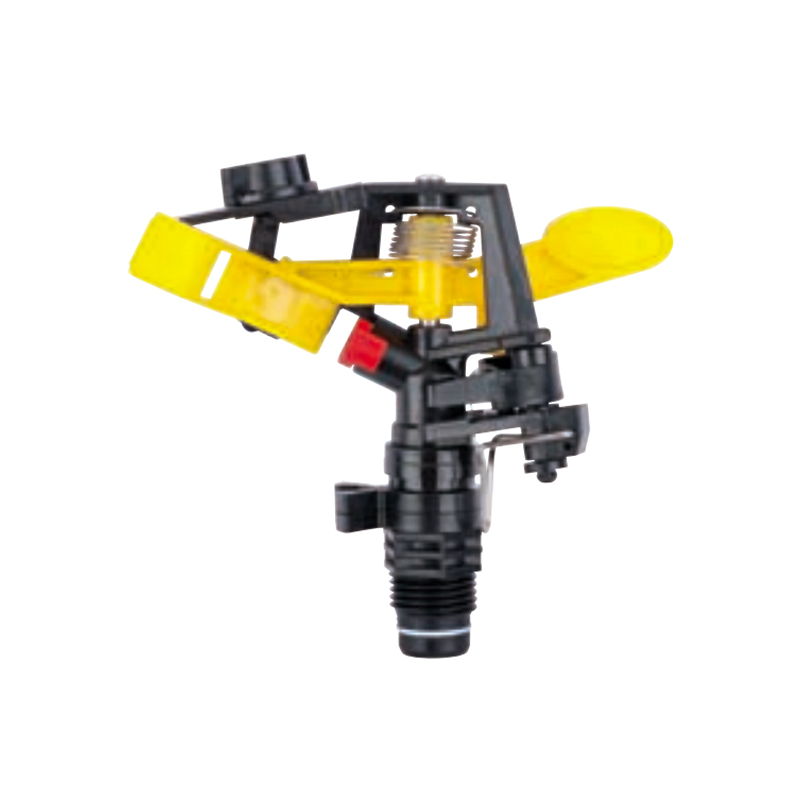

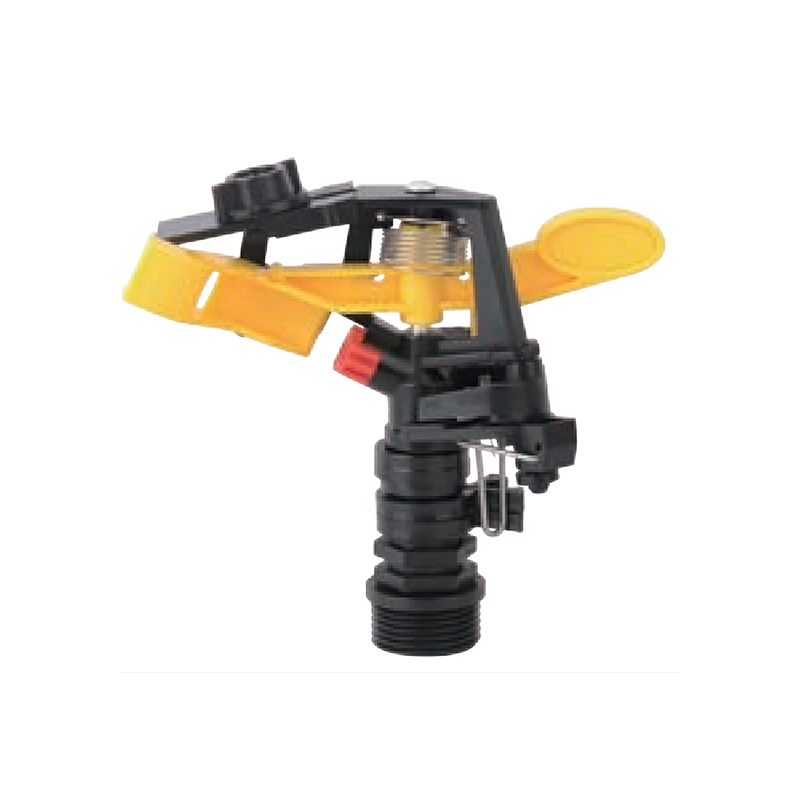

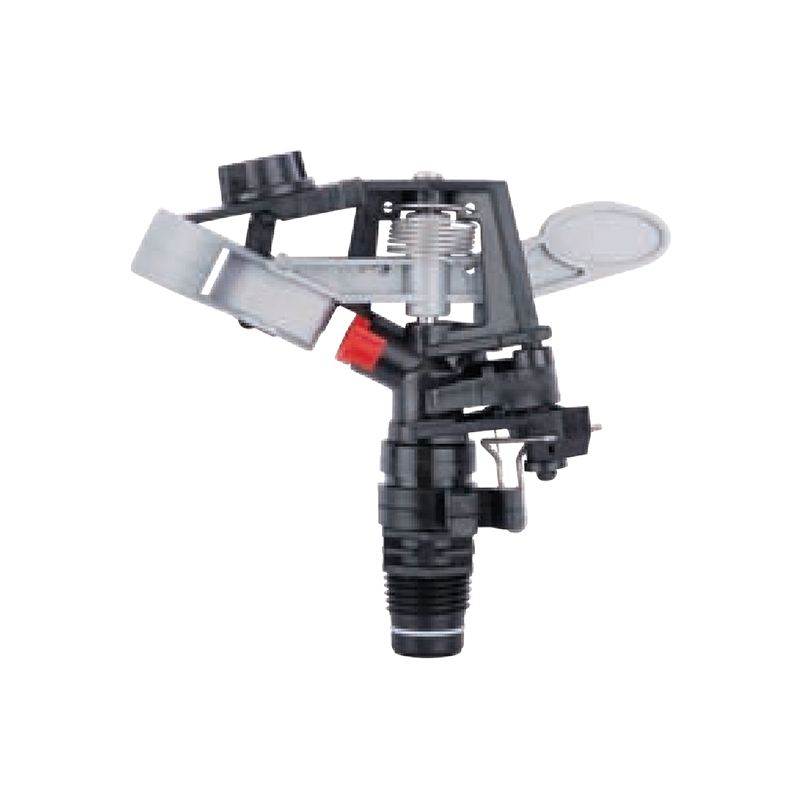

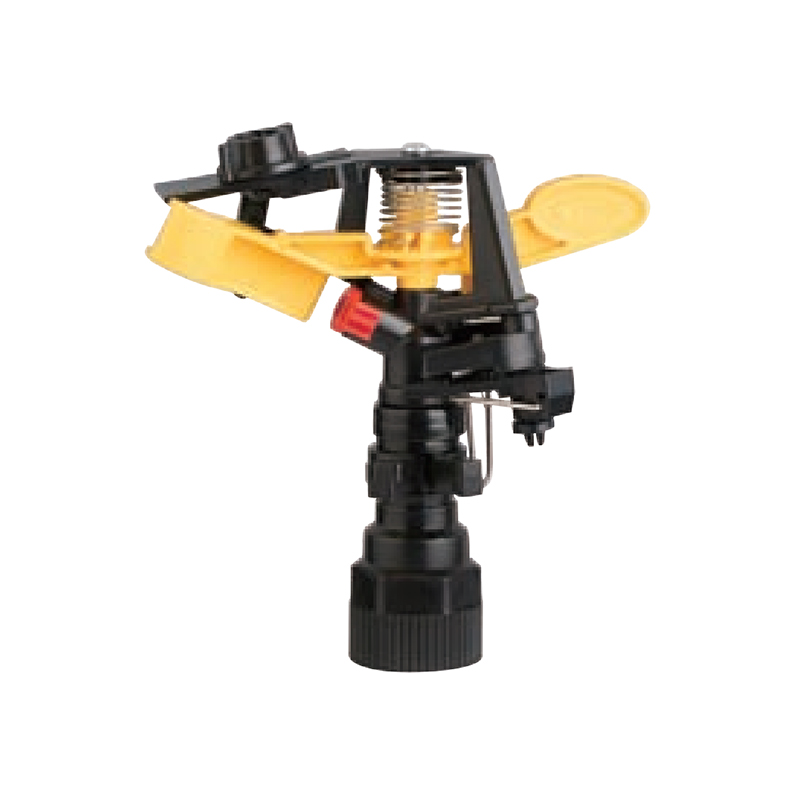

Impact sprinkler for agricultural irrigation is a common and efficient agricultural irrigation tool designed for large areas of farmland. Its unique structure can evenly cover a large area by rotating and spraying water, effectively providing moisture to crops. The nozzle is driven by water pressure to produce continuous blowing action, so that the water flow presents a powerful spray, which is suitable for agricultural irrigation needs of different soil types and terrains.
This sprinkler head is usually made of durable materials with strong corrosion resistance and weather resistance, and can be used outdoors for a long time and withstand various weather conditions. Impact sprinklers are easy to install and maintain and are suitable for irrigation in large areas such as farmland, orchards and pastures. They are an important tool for improving irrigation efficiency and saving water resources.
| Nozzle Size | mm | 2.5 | 2.8 | 3.0 | 3.2 | 3.5 | 4.0 | ||||||||||||
| Pre. | bar |
2.0 | 3.0 | 4.0 | 2.0 | 3.0 | 4.0 | 1.0 | 2.0 | 3.0 | 1.0 | 2.0 | 3.0 | 1.0 | 2.0 | 3.0 | 1.0 | 2.0 | 3.0 |
| Flow Rate | L/h | 360 | 450 | 510 | 450 | 550 | 630 | 360 | 510 | 630 | 410 | 570 | 700 | 490 | 660 | 810 | 600 | 850 | 1030 |
| Rad. | m | 10.5 | 10.8 | 11.3 | 11.0 | 11.5 | 12.0 | 9.5 | 11.5 | 12.0 | 10.0 | 11.5 | 12.0 | 10.0 | 11.5 | 12.0 | 10.5 | 12.0 | 13.0 |
